"KST Fast Gate Controller" Description of Control Panel of KST Electronic Control Box

5位LED数码管显示区：可分别显示编码器当前脉冲数，频率、转速、电压、电流、故障代码、功能码等。


The display area of 5-bit LED digital tube can display the current pulse number, frequency, speed, voltage, current, fault code and function code of the encoder respectively.


状态指示灯：用于指示变频器当前状态。方向、启停、学习、手动、自动


State indicator: Used to indicate the current state of the converter. Direction, Start and Stop, Learning, Manual, Automation

菜单选择切换键：编程状态与监视状态的切换键，进行参数显示与编程菜单的切换,在编程菜单状态下操作该键则返回到前一级菜单。


Menu selection switch key: switch key between programming state and monitoring state, switch between parameter display and programming menu, operate the key in programming menu state and return to the previous menu.


功能选择/存储键:在编程状态下进入下一级菜单。在三级菜单状态下完成参数的存储操作。


Function Selection/Storage Key: Enter the next level menu in the programming state. In the three-level menu state, the storage operation of parameters is completed.


加1/上行键:设定参数值的递增；Cr028设为1时，此键可控制门机上行


Add 1/Up Key: Set the increment of parameter value; When Cr028 is set to 1, this key can control the door crane upstream.


脉冲显示模式/学习键：在频率显示状态下，按此键可进入脉冲显示模式，可监控当前位置变化，长按此键，5位数值闪烁，进入门机总高学习状态；


Pulse Display Mode/Learning Key: In the state of frequency display, press this key to enter the Pulse Display Mode, which can monitor the current position change, press this key for a long time, and flicker with 5-digit value to enter the total high learning state of the portal crane.


移位键：可以改变设置数据的修改位，移到当前位时，此位数码管闪烁，此时按上下键可以对当前位数据修改


Shift key: You can change the modification bit of the set data. When you move to the current bit, the digital tube flickers. At this time, you can modify the current bit data by pressing the upper and lower keys.


减1/下行键：设定参数值递减。Cr028设为1时，此键可控制门机下行,此时相当于REV下行端子功能


Decrease 1/Downlink key: Set parameter values to decreases. When Cr028 is set to 1, this key can control the downlink of door crane, which is equivalent to REV downlink terminal function.


停止命令/故障复位键：变频器运行时用于停机操作；相当于急停X3端子功能，运行时按下此键，电机马上停机、停机指示灯闪烁，表示在急停状态，再按一下此键，停机指示灯灭，表示退出急停状态


Stop command/fault reset key: the frequency converter is used for shutdown operation when it is running; it is equivalent to the function of emergency stop X3 terminal. When it is running, press this key, the motor stops immediately and the stop indicator flashes, indicating that it is in the state of emergency stop. Press this key again, the stop indicator lights go out, indicating that it is out of the state of emergency stop.


复位/清零键：变频器故障复位，在学习门高状态时，长按此键，可清零当前编码器脉冲数，用于学习门机下限位零点位置，相当于X0端子清零功能；


Reset/reset key: Frequency converter fault reset, long press this key in the high state of learning gate, can reset the current number of encoder pulses, used to learn the lower limit zero position of the door machine, equivalent to the X0 terminal reset function;


手动/自动模式切换：Cr029设为1时，此按键功能相当于X4手自动转换开关功能


Manual/automatic mode switching: When Cr029 is set to 1, this button function is equivalent to X4 manual automatic switching switch function.


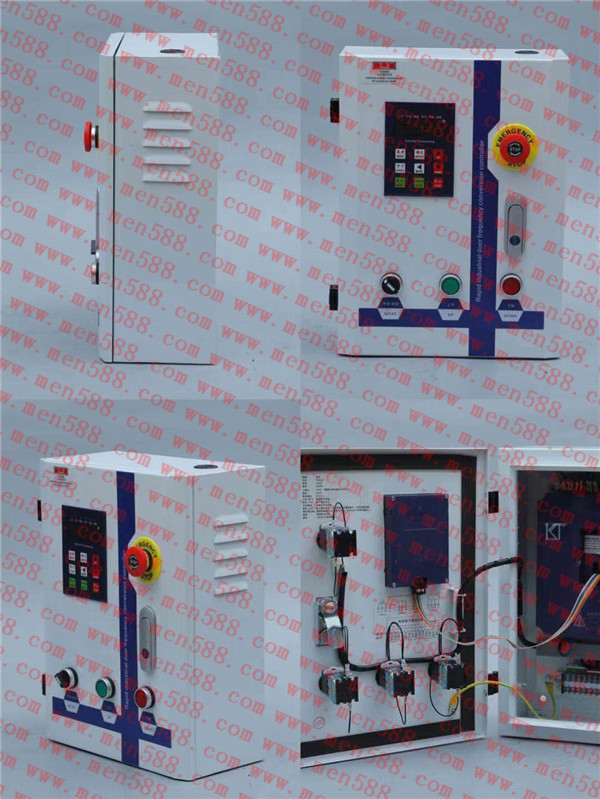

「KST快速门控制器」可为您提供220V/380V电控箱，功率有0.75/1.5/2.2/3.8等功率，欢迎来电订购，大量现货，低价批发，全国配送上门。


"KST Fast Gate Controller" can provide 220V/380V electronic control box with equal power of 0.75/1.5/2.2/3.8. Welcome to order, large number of spot, low-cost wholesale, door-to-door distribution throughout the country.
