      「山水工业门控制箱」先锋工业门电机主机接线方法

      作者:山水工业门控制箱   时间:2019/8/16 14:49:02

    • 「山水工业门控制箱」先锋工业门电机主机接线方法



      Connection Method of Pioneer Industrial Door Motor Main Engine of Shanshui Industrial Door Control Box







      在附件中的两根电缆线穿过防水接头接在主机内的接线端子上:


      The two cables in the accessories are connected to the terminal of the host through the waterproof joint:


      电机线蓝线接下“U”上(公共线)、棕、黑线分别在“V”/"M"上,黄绿双色线接在接地标志上;


      The blue line of the motor is connected with the "U" (public line), the brown line and the black line are connected with the "V" / "M" respectively, and the yellow-green double-color line is connected with the grounding sign.



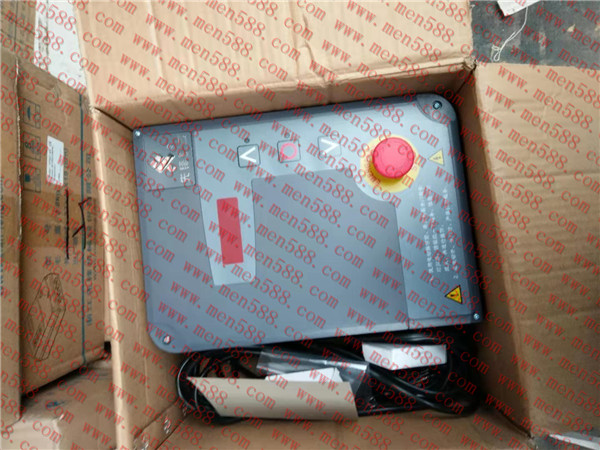

      山水工业门控制箱



      限位线接红色在"cl"(关限位)、绿线接在“OP”(开限位)、白线接在“CO”上(限位公共线);


      Limit line is connected with red in "cl" (close limit), green in "OP" (open limit) and white in "CO" (limit public line).


      边上的"NO"\CO"/"NC"是一个限位开关动作后输出一个无源信号,“CO为公共线”,用户可更具需要自行进行接线。


      The "NO"CO"/"NC"on the edge is a passive signal output after the limit switch action,"CO is a public line", users need to connect more by themselves.


      确认接线正确可靠后,拧紧防水接头的螺母。


      After confirming that the connection is correct and reliable, tighten the nut of the waterproof joint.


      关于山水工业门电机三相控制箱的接线、单相控制箱的接线、您可关注我们的网站,我们会在近期为您分享。


      About the wiring of three-phase control box and single-phase control box of Shanshui industrial gate motor, you can pay attention to our website. We will share it with you in the near future.
